The Baseline Sinker Weight Formula for Deep Lingcod

Holding vertical bottom contact for deep-drop lingcod between 300 and 700 feet requires 16 to 48 ounces of lead, calculated at roughly 1 ounce per 15 feet of depth at a dead drift and scaling to 1 ounce per 8 to 10 feet in 1- to 2-knot currents. A drift speed over 1.5 knots at 500 feet immediately pushes standard weights out of the strike zone. If you miss bottom contact for even 30 seconds on a deep drift, your bait is no longer fishing.

Line scope is the angular departure of your braided line from a true vertical 90-degree plane down to the seabed, caused by the drag of wind and surface currents pushing against the hull and line diameter. When line scope exceeds 30 degrees, water drag lifts the sinker upward. Lingcod hold directly against rock faces and floor contours. According to catch data published by the Pacific Fishery Management Council, Pacific groundfish cluster along high-relief, rocky shelf edges where current concentrates bait. When excessive current sweeps your mainline into a flat angle, your bait rises several fathoms off the bottom. As the boat continues drifting, that belly in the line pulls the sinker horizontally across the structure, wedging your tackle straight into rocky pinnacles instead of tapping over them. This issue of line drag pulling terminal gear off-target mirrors the horizontal displacement documented in the Downrigger Blowback: True Depth at 80-180ft (Chart).

Every extra ounce of lead keeps your presentation vertical, but weight creates operational fatigue. Manually checking bottom and cranking a 48-ounce cannonball up from 600 feet places severe strain on your arms, shoulders, and tackle. Paired with a heavy conventional reel and an extra heavy conventional rod, a 3-pound lead turns every missed strike into an exhausting recovery cycle.

If you fish too light to save your arms, you scope out and lose rigs to the reef. If you fish too heavy, angler fatigue sets in after two drops, leading to rushed drifts and missed bites. While vertical presentation mechanics are similar to metal jig adjustments in the Slow Pitch Jig Weight Chart: 100 to 800 Feet (Chart), bait rigs carry greater hydrodynamic drag and require strict adherence to depth-to-weight ratios. The Washington Department of Fish and Wildlife notes that rocky bottom habitats demand immediate depth management to prevent gear loss.

BASE FORMULAS:
• Dead drift (<0.5 kt): 1 oz lead per 15 ft depth
• Moderate drift (0.5-1.0 kt): 1 oz lead per 12 ft depth
• Fast drift (1.0-2.0 kt): 1 oz lead per 8-10 ft depth

DEPTH TARGETS:
• 300 ft: 20 oz (calm) to 32 oz (current)
• 500 ft: 32 oz (calm) to 48 oz (current)
• 700 ft: 48 oz max conventional hand-crank limit

OPERATIONAL LIMITS:
• Max Line Scope: 30 degrees from vertical
• Recovery Rule: Scope >30° = reel up and reset drift
• Failure Point: Bait lifts 10+ ft off bottom when scoped

Knowing your baseline weight formula handles calm water, but drift speed fundamentally changes how that lead behaves once it passes 300 feet. The drift-speed matrix below reveals the exact hydrodynamic tipping points where a 24-ounce weight fails and a 40-ounce torpedo becomes mandatory.

Table of Contents

• The Baseline Sinker Weight Formula for Deep Lingcod
• How Line Diameter and Current Compound Subsurface Drag
• Matching Sinker Shapes to Current Speed and Bottom Terrain
• The Lingcod Deep Drop Sinker and Drift Speed Chart
• Sources & Further Reading

How Line Diameter and Current Compound Subsurface Drag

Line diameter directly dictates how much lead mass you need to maintain bottom contact, because water resistance against your mainline scales with its total surface area. At depths between 300 and 700 feet, every additional hundredth of a millimeter in line thickness creates substantial water resistance that lifts your terminal weight off the rocks.

Line belly is the broad lateral arc water friction forces onto submerged fishing line, pulling your terminal tackle away from a vertical orientation and reducing tactile bite detection.

According to product specifications from Shimano PowerPro, standard 50lb braided line has a diameter of 0.36mm, 65lb measures 0.41mm, and 80lb expands to 0.43mm. When dropping in 500 feet of water, that 0.07mm difference between 50lb and 80lb braid adds roughly 21 square inches of surface area exposed to sideways water flow. Running 50lb or 65lb eight-carrier braid allows you to hold bottom with a 24oz sinker in conditions that would force an 80lb setup to blow out with 40oz. The principles mimic the physics outlined in the Downrigger Blowback: True Depth at 80-180ft (Chart), where lateral drag pulls your gear out of the target strike zone. Heavy braid also requires wider spools, compounding line capacity issues on compact conventional reels.

       SURFACE DRIFT: 1.5 KTS (NORTH)
 [Boat] ─────────────────────────────
    \
     \  Surface Layer (0-150ft)
      \
       )  COUNTER-CURRENT: 0.8 KTS (SOUTH)
      /   Mid-Depth Layer (150-400ft)
     /
    (   BOTTOM CURRENT: SLACK
     \  Deep Layer (400-600ft)
      |
    [32oz Sinker on Reef]

Subsurface drag rarely travels in a single direction. Data from the National Oceanic and Atmospheric Administration Physical Oceanography Division shows that continental shelf waters regularly feature stratified layers moving in conflicting directions. Your boat might show a surface drift of 1.2 knots to the northwest, while a cold-water layer at 300 feet flows southeast at 0.8 knots.

These shear layers bend your mainline into an elongated S-curve. When your braid forms an S-curve, you lose direct tension between your rod tip and the bottom rig. A 32oz torpedo weight may tap bottom initially, but the conflicting currents belly the mainline outward until friction drags the lead across rocky pinnacles, causing immediate snags. Just as deep-water jigging demands precise mass tuning in the Slow Pitch Jig Weight Chart: 100 to 800 Feet (Chart), bottom-bouncing lingcod rigs require enough downward momentum to slice through opposing hydro-layers without bowing.

Wind adds another mechanical problem by driving your boat’s hull faster than the surrounding water column. When surface wind drift accelerates your hull to 1.5 knots across a 0.5-knot current, your line scope angle widens past the critical 30-degree threshold. Once your mainline angle exceeds 30 degrees from vertical, upward hydrodynamic lift overpowers gravity.

To fix this, add 8oz of lead for every 0.5 knots of boat speed exceeding 1.0 knot, regardless of whether your bottom depth changes. For extreme tidal rips, reviewing the Sinker Weight and Wire Gauge for 3-5 Knot Currents (Chart) helps baseline how hydrodynamic drag scales as speed climbs.

Knowing your drift speed is only half the equation, because you still need to match the specific sinker profile to the rock pile contours mapped on your sounder.

Matching Sinker Shapes to Current Speed and Bottom Terrain

Hydrodynamic drag and seabed structure dictate sinker geometry when targeting lingcod across 300 to 700 feet of water. Hydrodynamic drag is the mechanical resistance water exerts against your line and terminal weight as current sweeps past them, forcing the rig upward away from the ocean floor. Selecting the wrong lead profile increases line scope, pulls your bait out of the strike zone, and causes expensive gear losses in rocky terrain.

Torpedo and Stick Sinkers for Fast Drifts

Torpedo and cylindrical stick sinkers drop rapidly because their narrow frontal surface area cuts clean through moving water. When drift speeds exceed 1.0 knot, horizontal water pressure lifts standard round weights toward the surface, much like the drift effects mapped in our Downrigger Blowback: True Depth at 80-180ft (Chart). According to fluid dynamics testing documented by the Society of Naval Architects and Marine Engineers (SNAME), streamlined cylindrical bodies produce roughly 35% less profile drag than spherical forms of identical weight.

Deploy a 32oz or 48oz torpedo lead when surface drift tracks between 1.2 and 2.0 knots over gravel flats or smooth mud-rock transitions. The slim profile maintains a vertical presentation with line angles under 15 degrees, keeping your bait within 3 feet of the bottom. When current accelerates past 2.0 knots, compare your line resistance against the benchmarks in our Sinker Weight and Wire Gauge for 3-5 Knot Currents (Chart) to ensure your mainline diameter does not defeat the sinker’s streamline.

Cannonball Weights for High-Relief Structure

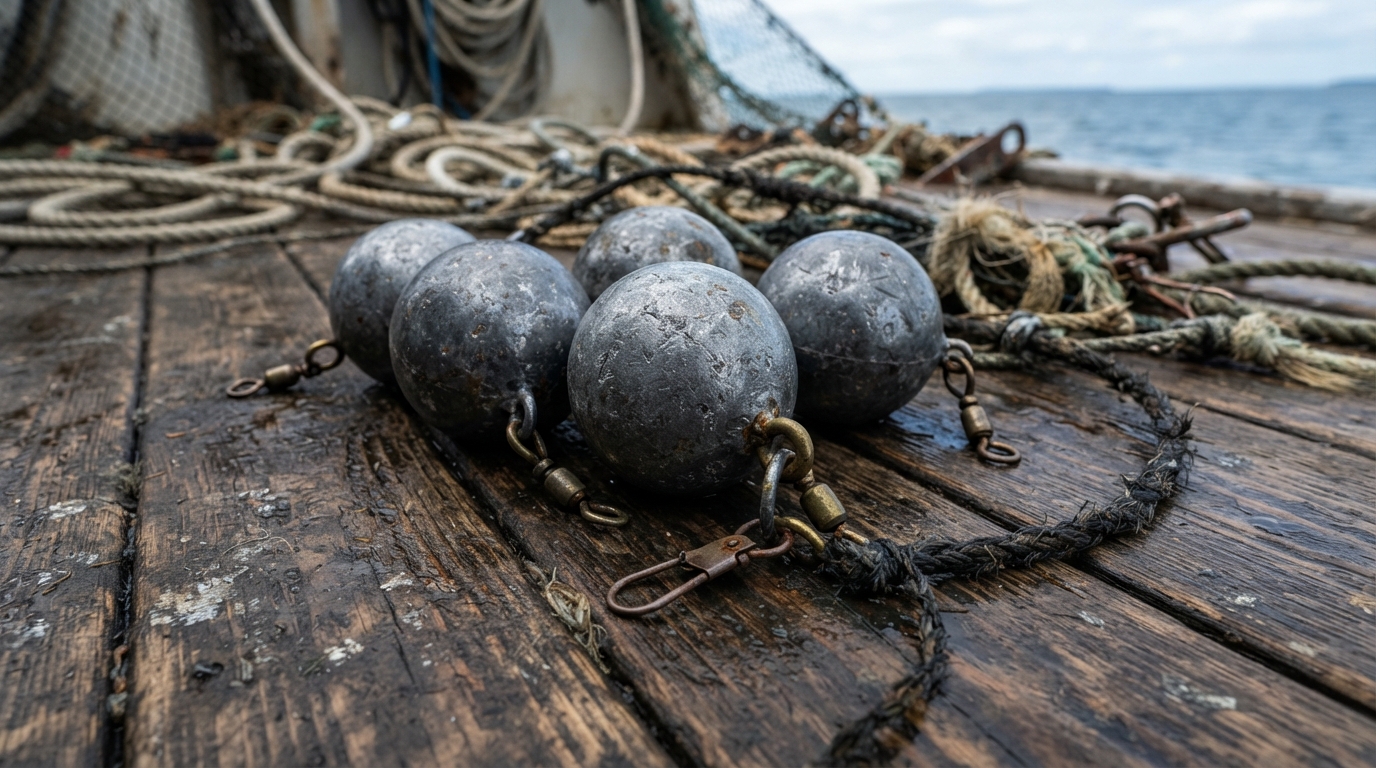

Round cannonball weights remain the standard tool when drifting across jagged basalt pinnacles, boulders, and steep drop-offs. The Washington Department of Fish and Wildlife (WDFW) notes that trophy lingcod concentrate heavily around high-relief rocky structure with vertical rises exceeding 20 feet. Long torpedo sinkers drop straight into vertical rock cracks and jam immediately under boat momentum.

Cannonballs roll across jagged shelves and bump over crevices without lodging into tight crevices. Run spherical lead whenever your drift rate remains under 0.8 knots. At low velocities, the increased water resistance of a sphere does not lift your rig, but its broad geometry prevents wedging into fractures that claim slim sinkers on contact.

Sacrificial Breakaway Rigging

Rigging a breakaway dropper loop is standard operating procedure for commercial and charter deep-drop operations. Tie a 4-inch to 6-inch link of 20lb to 30lb nylon monofilament between the bottom eye of a heavy-duty Rosco three-way brass swivel and your lead eyelet. Run your mainline to the top eye and attach an 80lb to 100lb fluorocarbon bait leader to the side eye.

When an unyielding rock crevice traps a 32oz sinker, apply steady upward pressure with the boat’s engine or rod reel seat. The 25lb sacrificial mono breaks cleanly at the swivel connection, releasing the snag while recovering your hooks, leader, and main braided line intact.

Once you match the lead profile to the bottom structure, consult the drift velocity matrix below to calculate the exact ounce rating needed to hold bottom at your drift speed.

The Lingcod Deep Drop Sinker and Drift Speed Chart

Maintaining vertical presentation for lingcod in 300 to 700 feet of water requires sizing your sinker between 16 and 48 ounces so the line counter never exceeds 120% of the sonar depth.

Spool angle is the tilt of your braided mainline measured in degrees relative to the vertical water surface as the boat drifts away from the terminal tackle. When your spool angle exceeds 30 degrees from vertical, your rig lifts off the seabed, drags through rocky pinnacles, and snags. The National Oceanic and Atmospheric Administration (NOAA) publishes tidal current charts showing that Pacific Northwest shelf margins regularly produce bottom currents exceeding 1.5 knots during spring tide exchanges.

The reference matrix below matches water depth brackets directly to your GPS over-ground drift speed. Use 50lb or 65lb braid with a torpedo or cannonball lead to achieve these targets.

Hydrodynamic line drag works against you as depth increases, similar to the line resistance calculations detailed in our Downrigger Blowback: True Depth at 80-180ft (Chart). If you switch from baited dropper loops to metal jigs, cross-reference your lead selections against the Slow Pitch Jig Weight Chart: 100 to 800 Feet (Chart) to maintain action without sacrificing drop speed. For extreme high-current systems, comparing these specs to our Sinker Weight and Wire Gauge for 3-5 Knot Currents (Chart) helps isolate line diameter variables.

Heavy offshore currents require continuous monitoring of two diagnostic metrics: your line counter payout and your rod tip angle. If your sonar reads 400 feet and your line counter shows 480 feet before the weight touches down, your scope ratio is 1.2:1. That is your operational ceiling. If the payout reaches 500 feet (a 1.25:1 ratio) or your spool angle passes 35 degrees, step up one weight tier immediately (for example, from 24oz to 32oz).

When working structure in 600 to 700 feet during drifts above 1.5 knots, passive drifting fails. You must "power drift" by reversing the vessel into the wind or swell at 0.5 to 1.0 knots to keep lines pinned under the gunwale. The Washington Department of Fish and Wildlife (WDFW) notes in their groundfish survey guidelines that bottom contact verification is essential to sample targeted demersal species efficiently. Trolling or drifting without solid substrate contact leaves your gear suspended above productive reef shelves. If you run deep-water high-drag setups for pelagics, you already manage similar dynamics on our High-Speed Wahoo Sinker Chart (16oz to 96oz Depth Guide) and Daytime Swordfish Lead Sizing: 8lb to 18lb (Chart).

BLOWOUT ROOT CAUSE AUDIT:
[Sonar Depth]: _____ ft
[Line Counter at Bottom Contact]: _____ ft
[Calculated Ratio (Counter / Depth)]: _____ : 1
[Measured Drift Speed]: _____ knots
[Current Sinker Weight]: _____ oz
[Corrective Action]: Jump weight to _____ oz

Calibrate your line counter against your sonar on the first drop today, confirm your scope ratio remains under 1.2:1, and step your lead weight up one bracket the moment your line angle hits 30 degrees.

Sources & Further Reading

Lingcod sinker selection for depths between 300ft and 700ft relies on hydrodynamic drag equations, offshore bathymetric charting, and federal groundfish survey standards. When you match lead weights between 16oz and 48oz to drift speeds of 0.5 to 2.5 knots, you directly counter line friction to control blowback angle.

Blowback angle is the deviation of your fishing line from a true vertical orientation caused by the combined forces of water drag and vessel drift. Maintaining this angle below 20 degrees ensures your terminal gear stays inside the strike zone along rocky benthic structure.

Empirical sinker charts draw from principles published in Sighard Hoerner’s classic engineering text Fluid-Dynamic Drag, which quantifies how submerged frontal area and velocity dictate cable tension. A standard 65-pound braided line with a 0.41mm diameter generates roughly 4.2 pounds of dynamic drag force when drifting across a 1.5-knot surface current at 500ft of deployed depth. Offsetting that drag requires a minimum 32oz torpedo weight to avoid scope-out, where the line trails horizontally and loses bottom tracking entirely.

Management frameworks from state and federal regulators also dictate these depth-specific rigging requirements. Biologists tracking benthic species distribution through NOAA Fisheries document that mature lingcod (Ophiodon elongatus) heavily colonize high-relief pinnacles along the continental shelf break at 400ft to 650ft. Precision weighting protects gear from snagging these high-relief pinnacles while preventing unintended gear loss in designated rockfish conservation zones monitored by the Pacific Fishery Management Council.
