Drift Angle Thresholds for Halibut at 300–500 Feet

To maintain a sub-25-degree drift angle in a 1-knot current at 400 feet, 65lb braid requires 24oz of lead, 80lb braid requires 32oz, and 100lb braid demands 40–48oz to keep terminal tackle pinned to the seafloor. Exceeding this 25-degree threshold degrades depth control and hookup mechanics rapidly. Once line scope extends past 30 degrees, hydrodynamic drag creates significant line belly that absorbs angler rod movement and prevents the steady load necessary to turn a circle hook into a giant halibut’s jaw.

Drift angle is the angular deviation between your fishing line and a vertical axis dropped straight from the rod tip to the ocean floor, measured in degrees as current and boat movement sweep the rig away.

Field operational reports from the International Pacific Halibut Commission (IPHC) show that offset circle hooks depend on continuous, direct inline tension to pivot around the jaw hinge and penetrate the lip cartilage. When your drift angle exceeds 30 degrees, the line no longer forms a straight hypotenuse from rod tip to sinker. Instead, cross-current drag pushes the mid-depth line into a broad, sweeping curve.

This line belly acts as a hydraulic damper. When a halibut strikes a bait at 450 feet on a 35-degree line angle, you must reel through 30 to 60 feet of lateral slack before transmitting a single ounce of load to the hook point. By the time the line comes tight, the fish has often chewed through the bait or expelled the hook point entirely. Furthermore, bottom contact becomes indistinct. You can no longer differentiate between a rocky ledge, soft silt, or a tentative bite.

Hydrodynamic drag on braided fishing lines follows the classic crossflow drag principles outlined in S.F. Hoerner’s engineering reference Fluid-Dynamic Drag. Drag force increases in direct proportion to the line’s frontal surface area and the square of current velocity (\(F_d = 0.5 \rho v^2 C_d A\)).

Standard 65lb spectra braid, such as PowerPro, has an average diameter of 0.41 mm, while 80lb measures 0.43 mm, and 100lb measures 0.46 mm. At 400 feet of deployed line, that nominal 0.05 mm jump between 65lb and 100lb braid exposes an additional 238 square inches of cylindrical surface area to the moving water column.

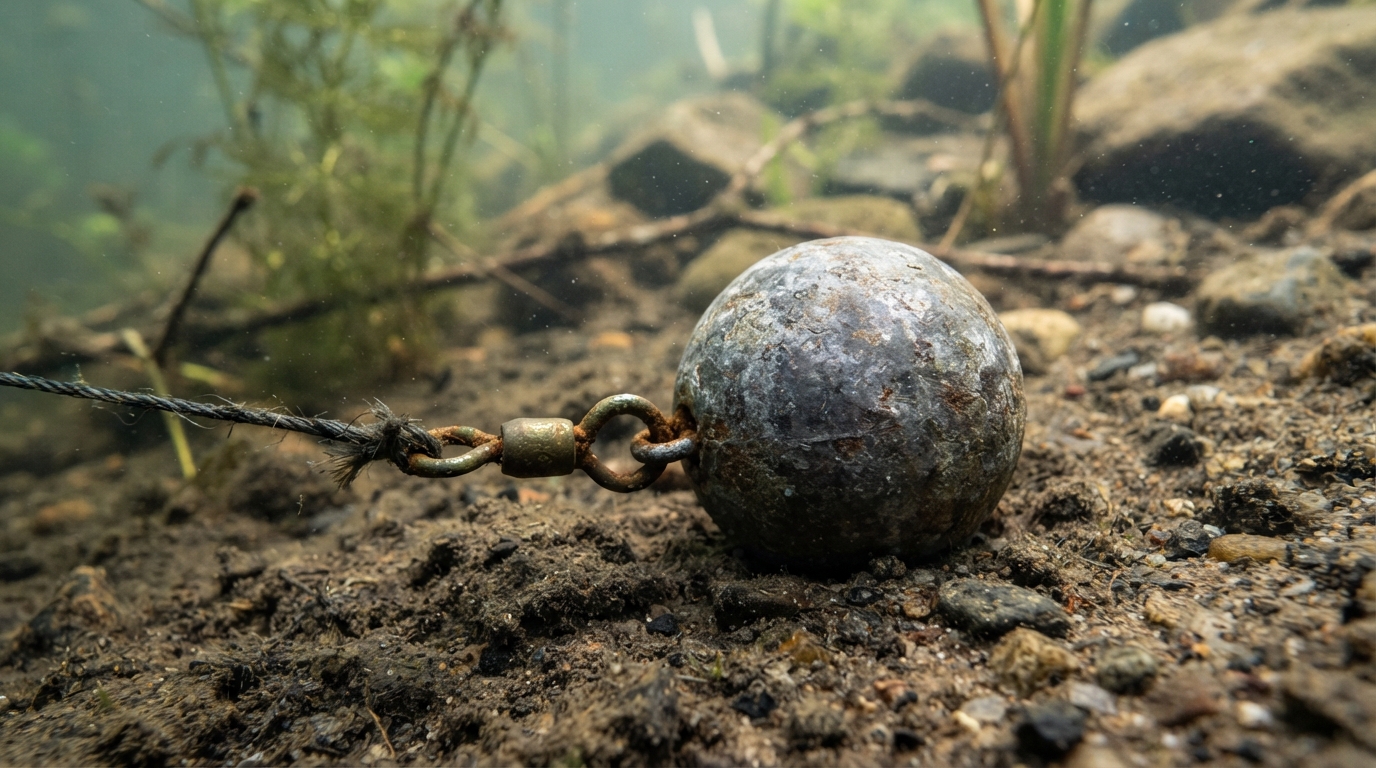

Water moving across that extended profile exerts sustained lateral friction, pushing the terminal rig up and back. Spherical cannonball sinkers provide the lowest drag coefficient of common fishing sinkers, yet even a 32oz lead ball displaces roughly 5.2 cubic inches of saltwater, creating its own boundary-layer drag. When line friction exceeds the gravitational downforce of your sinker, the entire rig lifts out of the halibut’s benthic strike zone.

Which Setup Matches Your Depth and Current?

Current is light (under 0.8 knots) at 300 to 350 feet

Rig 65lb braid with a 16oz to 24oz cannonball sinker to achieve a nearly vertical 15-degree scope. This line diameter minimises water friction and preserves rod sensitivity for subtle takes. Review weight adjustments for slower drifts in the Lingcod Sinker Sizing: 16oz-48oz (Drift Speed Chart).

Current is moderate (0.8 to 1.3 knots) at 350 to 450 feet

Spool 80lb braid paired with a 32oz or 40oz lead cannonball to lock your angle below 22 degrees. The 80lb carrier braid gives you sufficient abrasion resistance against rough glacial gravel while limiting cross-section drag. Compare depth-specific sink rates in the Slow Pitch Jig Weight Chart: 100 to 800 Feet (Chart).

Current is aggressive (over 1.5 knots) or depth exceeds 450 feet

Run 80lb braid with a 48oz to 64oz torpedo or stick lead, or downsize to 65lb braid on a two-speed conventional reel if bottom structure is clean. Stepping up to 100lb braid in heavy flows creates excessive line belly that demands up to 5 pounds of lead to hold bottom. For rigging heavy leads in extreme flows, see the Sinker Weight and Wire Gauge for 3-5 Knot Currents (Chart).

Calculating the precise ratio of line diameter to lead mass requires balancing water column resistance against the exact drift speed of your hull, which leads straight into the mathematical formula presented below.

Key Takeaways

  • Stepping down from 100lb to 65lb braid reduces line surface drag by roughly 30% at depth.
  • Holding a clean 20-degree drift angle at 400 feet in 1-knot current requires 32oz with 80lb line.
  • Each 0.1mm increase in braid diameter demands roughly 6–8 additional ounces of lead to maintain verticality.
  • A drift angle exceeding 30 degrees dramatically diminishes circle hook turnover and bottom-tracking precision.

Table of Contents


Hydrodynamic Drag Comparison of 65lb, 80lb, and 100lb Braid

At a depth of 400 feet, deploying 100lb braided line instead of 65lb increases the submerged projected frontal area by 34.1%, creating lateral resistance that pulls terminal gear off the seafloor unless you compensate with additional lead.

Hydrodynamic drag is the mechanical force of fluid resistance exerted against an object moving through water, which increases proportionally with the fluid velocity squared and the total surface area exposed to the flow.

When your line descends into the water column, it functions as an underwater sail. According to manufacturer specifications from PowerPro Super8Slick V2 and Daiwa J-Braid x8, standard 8-carrier lines measure 0.41mm for 65lb, 0.47mm for 80lb, and 0.55mm for 100lb test.

At a 400-foot payout (121.92 meters), that slender profile accumulates substantial surface area. A 0.41mm line creates 77.5 square inches (0.0500 m²) of projected frontal area against moving current. Stepping up to 0.47mm expands that frontal area to 88.8 square inches (0.0573 m²), while a 0.55mm line presents 104.0 square inches (0.0671 m²) directly against the tide.

Fluid dynamics research compiled in Sighard F. Hoerner’s reference work Fluid-Dynamic Drag establishes that circular cylinders in cross-flow operate at a baseline drag coefficient (\(C_d\)) between 1.0 and 1.2 across typical subcritical marine Reynolds numbers. The following matrix shows how line diameter expands hydraulic drag across a 400-foot vertical drop:

Line Rating (lb) Real-World Diameter Projected Frontal Area (400 ft) Wetted Surface Area (400 ft) Baseline Drag Coeff. (\(C_d\)) Resistance Increase vs 65lb
65 lb 0.41 mm (0.016 in) 77.5 sq in (0.0500 m²) 243.4 sq in (0.1570 m²) 1.10 Baseline (0.0%)
80 lb 0.47 mm (0.019 in) 88.8 sq in (0.0573 m²) 279.0 sq in (0.1800 m²) 1.12 +14.6%
100 lb 0.55 mm (0.022 in) 104.0 sq in (0.0671 m²) 326.4 sq in (0.2106 m²) 1.15 +34.1%

While 65lb braid produces the least drag, it leaves little margin for error when a 150-pound halibut pins itself against volcanic pinnacles. A single contact point against sharp rock can shear under-tension 65lb line instantly, as noted in field observations by the Extreme Angler research team.

Conversely, 100lb braid demands massive terminal tackle to counteract its 34.1% drag penalty. When drifting at 1.8 knots over deep structure, keeping a 100lb line below a 25-degree drift angle requires jumping from a 24-ounce ball to a 36-ounce or 48-ounce weight, similar to the ratios cataloged in our Lingcod Sinker Sizing: 16oz-48oz (Drift Speed Chart).

This dynamic makes 80lb braid the baseline compromise for deep-water drift fisheries. It incurs only a 14.6% drag penalty over 65lb braid while delivering an extra 0.06mm of core thickness, which provides roughly 28% greater abrasion cycle endurance against seafloor structure before catastrophic failure. You retain near-vertical presentation without needing the oversized sinkers outlined in our guide on Sinker Weight and Wire Gauge for 3-5 Knot Currents.

Frequently Asked Questions

How does braid weave count affect deep-water line drag?

An 8-carrier braid presents a rounder, smoother exterior profile than a 4-carrier braid, yielding a lower surface friction coefficient in moving water. A 4-carrier line has distinct exterior ridges that create micro-turbulences, generating up to 8% more hydrodynamic drag at equivalent breaking strengths. For deep vertical jigging techniques like those in our Slow Pitch Jig Weight Chart: 100 to 800 Feet, round 8-carrier or 9-carrier hollow-core lines reduce belly formation significantly.

Does line coating wear off and increase drift angle over time?

Yes, fluoropolymer and wax coatings shed after prolonged exposure to salt water and spool compression. As the protective coating strips away, braided line fibers absorb water and fray into microscopic filaments that increase nominal surface roughness, raising the drag coefficient by 5% to 12% over a season.

Calculating the hydrodynamic footprint of your mainline is only the first variable, because that lateral drag acts as a direct lever arm against your sinker’s downward displacement. To see how these surface area numbers translate into exact lead requirements across varying current velocities, examine the baseline sinker weight calculator in the next section.

How Current Speed and Sinker Shapes Compound Drift Angles

Current speed accelerates terminal drift angles non-linearly because hydrodynamic drag scales with the square of water velocity, meaning a 2.0-knot drift generates roughly four times the lateral drag force of a 1.0-knot drift against your line and terminal tackle. When fishing deep structure between 300 and 500 feet, an insufficient lead weight magnifies this fluid dynamic relationship, turning a manageable 15-degree drift angle into an unworkable 48-degree scope.

Hydrodynamic drag is the mechanical resistance force exerted by a fluid parallel to the relative flow direction, which acts against submerged fishing line and terminal lead to pull the entire rig downstream away from the vessel.

According to fluid dynamic drag formulations documented in Sighard F. Hoerner’s standard reference Fluid-Dynamic Drag, the geometry of the sinker dictates how efficiently it sheds water flow under tension. A standard spherical cannonball sinker carries a baseline drag coefficient (\(C_d\)) of roughly 0.47 in turbulent flow. In contrast, streamlined torpedo and cylindrical deep-drop sinkers present a frontal cross-section that cuts the drag coefficient down to roughly 0.18 to 0.22, while diamond-profile sinkers average around 0.30.

The practical consequence at 400 feet is stark. Paired with standard 80lb braided line (averaging 0.43 mm in diameter), a 32-ounce round cannonball at a 1.5-knot drift is pulled into a 38-degree angle, requiring 508 feet of paid-out line to hold bottom. Switching to an equal-mass torpedo sinker drops that line angle to 26 degrees, reducing total line out to 445 feet. Detailed calibrations for adjusting terminal mass across related fisheries appear in the Lingcod Sinker Sizing: 16oz-48oz (Drift Speed Chart) and the Slow Pitch Jig Weight Chart: 100 to 800 Feet (Chart).

Sinker Geometry (32 oz) Drag Coeff. (\(C_d\)) Frontal Surface Area (\(in^2\)) Lateral Drag at 1.5 Knots (lbf) Drift Angle at 400 ft (80lb Braid) Paid-Out Line to Hold Bottom (ft)
Spherical Cannonball 0.47 4.42 1.84 38° 508
Diamond Drop 0.30 3.10 1.22 31° 467
Torpedo / Stick 0.19 1.77 0.81 26° 445
Slender Deep-Drop Cylinder 0.17 1.54 0.69 23° 435

Surface conditions rarely reflect the vector physics occurring several hundred feet below your keel. Observational oceanography published by the National Oceanic and Atmospheric Administration (NOAA) illustrates that coastal shelves frequently produce distinct shear layers: wind-driven surface layers can move at 1.8 knots to the northwest, while benthic boundary currents 350 feet down creep at 0.4 knots to the southeast.

These opposing vectors impart a compound "S-curve" or lateral catenary into your mainline. Rather than descending in a clean hypotenuse, your braid bows through the high-velocity surface layer before reversing direction as it enters deep, slower benthic water. In fast offshore tidal races, maintaining control under extreme flow often mirrors the rigging setups found in the Sinker Weight and Wire Gauge for 3-5 Knot Currents (Chart).

This catenary belly creates a mechanical damping effect that masks sensitive strikes. A mature Pacific halibut (Hippoglossus stenolepis) exceeding 200 pounds often feeds by inhaling the bait through buccal suction rather than striking aggressively on the run. This suction pickup displaces the lead by only 2 to 4 inches, transmitting roughly 1.5 to 2.5 pounds of instant line tension.

When line belly from excessive drift angles exceeds 35 degrees, the lateral water pressure against the curved braid absorbs that displacement entirely. The belly stretches and flexes against the current rather than transferring the impulse up the rod blank. At drift angles beyond 40 degrees, the mechanical deadband requires you to reel through 12 to 18 feet of slack line before making direct contact with the sinker, allowing an apex predator to mouth, crush, and reject a whole herring without ever deflecting your rod tip.

Calculating your exact braid diameter against cross-sectional current resistance is the only way to eliminate this deadband before your next drop.

Sinker Weight Adjustments for Wind-Against-Tide Drift Scenarios

When wind vectors push a vessel faster than or counter to ambient tidal velocity, halibut rigs require up to 16 to 32 ounces of additional lead to stay pinned within the bottom strike zone at depths between 300 and 500 feet.

Wind-against-tide drift occurs when atmospheric surface winds blow in direct opposition to horizontal astronomical tidal currents, creating short, steep surface chop and opposing kinetic forces across a vessel’s hull.

According to hydrodynamic current calculations documented by the National Oceanic and Atmospheric Administration (NOAA), surface wind force exerts disproportionate friction against a boat’s freeboard compared to the subsurface water mass acting on the keel. In a standard 2-knot tidal flow opposing a 15-knot surface wind, a vessel’s speed over ground (SOG) decouples from the surrounding water column. The hull acts as an aerodynamic sail, pulling line away from the drift track at rates up to 1.8 knots faster than the localized subsurface current. This decoupling balloons the hydrodynamic drag along your 65lb to 100lb braid, causing severe catenary belly in the water column and lifting terminal gear clean off the seafloor.

Line-Entry Angle Versus Seafloor Terminal Vector

Anglers frequently misjudge rig depth because the line angle visible at the boat’s gunwale does not match the actual angle at the terminal tackle.

SURFACE: TRANSOM
Line entry: 25°
      |
      \   Hydrodynamic drag
       \  bows braid outward
        \
         |
MID-DEPTH (200 FT)
Effective belly expands
         |
          \
           |
SEAFLOOR (400 FT)
True lead angle: 55°
Sinker lifts off bottom

Water drag acts exponentially along hundreds of feet of submerged braided line. While a rod tip may show a clean 25-degree angle entering the surface, fluid resistance forces the middle 300 feet of line into an outward arc. At the seafloor, that geometric curve often degrades into an ineffective 55-degree drift vector, skittering a 32-ounce cannonball 10 to 20 feet above bottom-dwelling flatfish. Similar drag realities dictate terminal selections in our Lingcod Sinker Sizing: 16oz-48oz (Drift Speed Chart) and deep current profiles found in the Sinker Weight and Wire Gauge for 3-5 Knot Currents (Chart).

Deploying Drogues to Slash Weight Requirements

Deploying a commercial fabric sea anchor—commonly termed a drogue—from the windward quarter or transom arrests hull drift speed by creating immense hydrodynamic resistance in the upper water layer.

Testing published by the drag-device research group at the Co-Motion Ocean Safety Project indicates that a properly sized drogue can reduce wind-induced hull velocity across the surface by 45% to 60%. When wind accelerates drift speed over ground from 1.2 knots to 2.8 knots, terminal rigs typically require an escalation from 24 ounces to 40 ounces of lead to maintain vertical contact at 350 feet. Deploying a 48-inch drogue immediately drops the required sinker mass by 12 to 16 ounces. This reduction lowers physical angler fatigue and preserves the tactile sensitivity needed to register subtle halibut bites.

Breakaway Rigging for Heavy Structural Drift

Operating heavy weights over mixed gravel, boulder piles, and shelf drops at 400 feet increases snag risks substantially. A rigid connection between heavy terminal lead and primary braid guarantees catastrophic gear loss when pinned to the bottom.

Mainline (80lb Braid)
         |
   Heavy Brass 3-Way Swivel
   /                      \
Leader (300lb Mono)    Breakaway Dropper
  to Circle Hook       (12" of 20-30lb Mono)
                           |
                     Cannonball Sinker

Practitioners isolate heavy lead using a sacrificial mono connection attached to a three-way brass swivel rated for 150 pounds or more. While the hook leader runs 200lb to 300lb monofilament to withstand dental abrasion from trophy flatfish, the sinker attaches via 12 inches of 20lb to 30lb monofilament. When heavy swell wedges a 3-pound lead into rock fissures, the sacrificial line yields under 25 pounds of upward rod pressure. You lose an inexpensive sinker while recovering the mainline, swivel, and hooked fish intact, matching the release principles outlined in our Clip Gram-Tension Calibration: Sinker vs Swell (Table).

You decide: Wind-Current Misalignment at 420 Feet

Imagine you lead an offshore drift across a productive 420-foot trench off Montague Island. Surface winds have spiked to 18 knots directly against a 1.5-knot ebbing tide, accelerating boat drift speed over ground to 2.7 knots. Your anglers are using 80lb braid and 32oz lead, but their lines enter the water at a steep 50-degree transom angle, failing to touch bottom.

Decision point: How do you re-establish bottom contact for the spread?

Option A — Step up terminal lead to 48oz cannonballs on all rods

The extra pound of lead drives lines downward, regaining bottom contact at the start of the drift, but the extreme drag creates massive rod loading and numbs bite detection as line catenary builds mid-depth.

Adjust angler technique to manage the heavier payload

Anglers manage to hold bottom for short windows, but physical fatigue accelerates, and missed hooksets multiply because flatfish detect the rigid 3-pound inertia before swallowing baits. This prioritises raw depth penetration while sacrificing presentation quality.

Option B — Deploy a 54-inch sea anchor off the transom while keeping 32oz lead

The fabric drogue bites into the opposing subsurface tidal layer, acting as a brake against the 18-knot wind force and slowing vessel drift over ground to 1.1 knots.

Evaluate line angle adjustments across the spread

Line-entry angles sharpen from 50 degrees to an optimal 18 degrees almost immediately, restoring direct vertical feel with the existing 32oz sinkers without adding arm strain. This prioritises vessel speed control to correct the root hydrodynamic issue rather than compensating with excessive terminal mass.

Knowing how to offset surface vectors prepares your boat for the baseline hydrodynamics, but selecting between round cannonballs, torpedoes, and specialized stick weights determines how long your terminal gear remains vertical once dropped into the column.

The Quick-Reference Halibut Drift Calculator Chart

Maintaining a fishing line angle under 20 degrees at depths between 300 and 500 feet requires sinker weights between 16 and 64 ounces, determined by line diameter and drift velocity. Drift angle is the angular deviation of a fishing line from true vertical, measured in degrees at the rod tip as surface current and vessel movement exert lateral hydraulic drag against submerged tackle. Once the drift angle exceeds 20 degrees, bottom contact becomes inconsistent, scope increases exponentially, and bite detection degrades rapidly.

Hydrodynamic drag data published by the Society of Naval Architects and Marine Engineers demonstrates that fluid drag forces scale quadratically with velocity (\(F_d \propto v^2\)) and linearly with cable diameter. A standard 8-carrier 100lb ultra-high-molecular-weight polyethylene (UHMWPE) line like PowerPro measures approximately 0.46 mm in diameter, presenting roughly 12% more surface area to water flow than 80lb braid (0.41 mm) and 35% more than 65lb braid (0.34 mm). At a depth of 500 feet, this lateral frontal surface area totals over 70 square inches of submerged profile pushing against moving water.

The Drift Angle Lookup Matrix

The matrix below outlines the minimum sinker mass required to maintain an angle of less than 20 degrees under varying tidal flows. Calculations assume a standard 16-ounce spreader bar rig carrying a 10-inch bait profile. For comparative specifications across related bottom-fishing applications, cross-reference our Lingcod Sinker Sizing: 16oz-48oz (Drift Speed Chart) and the deep-water metrics in the Slow Pitch Jig Weight Chart: 100 to 800 Feet (Chart).

Depth (ft) Drift Speed (knots) 65lb Braid (0.34mm) 80lb Braid (0.41mm) 100lb Braid (0.46mm)
300 0.5 16 oz 16 oz 20 oz
300 1.0 20 oz 24 oz 28 oz
300 1.5 28 oz 32 oz 40 oz
300 2.0 36 oz 44 oz 48 oz
400 0.5 20 oz 24 oz 28 oz
400 1.0 28 oz 32 oz 36 oz
400 1.5 36 oz 44 oz 52 oz
400 2.0 48 oz 56 oz 64 oz
500 0.5 24 oz 28 oz 32 oz
500 1.0 36 oz 40 oz 48 oz
500 1.5 48 oz 56 oz 64 oz
500 2.0 60 oz 68 oz 80 oz

When surface and sub-surface currents run in divergent directions, water turbulence increases total hydrodynamic resistance. For operations approaching or exceeding 2.0 knots in heavy flow, evaluate the specialized configurations found in the Sinker Weight and Wire Gauge for 3-5 Knot Currents (Chart) on Extreme Angler.

On-The-Water Lead Adjustment Rule

When conditions change offshore, you do not need to recalculate fluid drag coefficients by hand. Practitioners employ a standardized field formula: for every 0.5-knot increase in drift speed, adjust sinker mass according to depth:

Speed Change (+0.5 kn)
     │
     ▼
At 300 ft: Add +8 oz
At 400 ft: Add +12 oz
At 500 ft: Add +16 oz

If your boat increases drift speed from 1.0 knot to 1.5 knots over a 400-foot contour while running 80lb braid, increase your lead from 32 ounces to 44 ounces immediately. Failing to compensate causes the line to plane upward, requiring you to dump extra line into the water column. This increases total wet surface area and steepens your drift angle past 30 degrees.

3-Step Pre-Drop Verification Checklist

Before dropping a multi-pound weight to deep benthic zones, run this three-step sequence to verify drift dynamics:

  1. Calculate Dead Drift Velocity: Shift the vessel to neutral for three minutes and record speed-over-ground (SOG) and course-over-ground (COG) on your marine GPS unit. Compare this against real-time tidal velocity tables from the National Oceanic and Atmospheric Administration to confirm whether wind or tide dominates vessel movement.
  2. Select Initial Mass from the Matrix: Match your recorded GPS SOG and target bottom depth to the corresponding braid class in the matrix above. Rig the indicated lead mass directly to the sliding dropper arm or cannonball release snap.
  3. Run a 50-Foot Angle Staging Check: Free-spool your terminal tackle to 50 feet and engage the reel spool. Inspect the line angle entering the water against a 20-degree reference gauge; if the line leans past 20 degrees at only 50 feet, bump sinker weight up one full bracket before descending to the seafloor.

5-Day Drift Angle Calibration Plan

Gate: Stop here if your line angle exceeds 20 degrees during staging; upsize lead mass before dropping gear to bottom depth.

Laminate this lookup matrix and affix it directly to your boat’s rigging station so you can size your lead before the first drop.
